Product Description

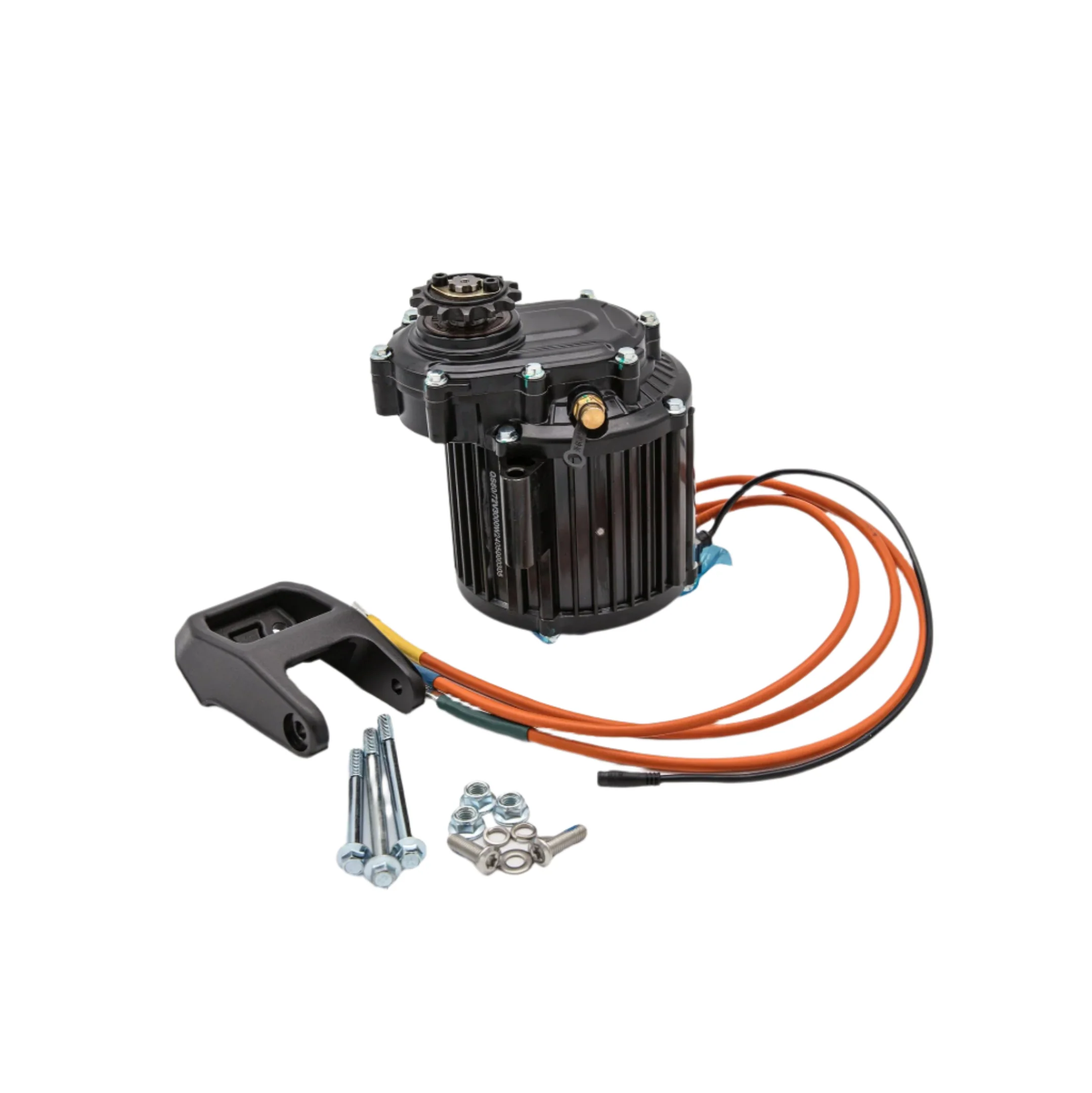

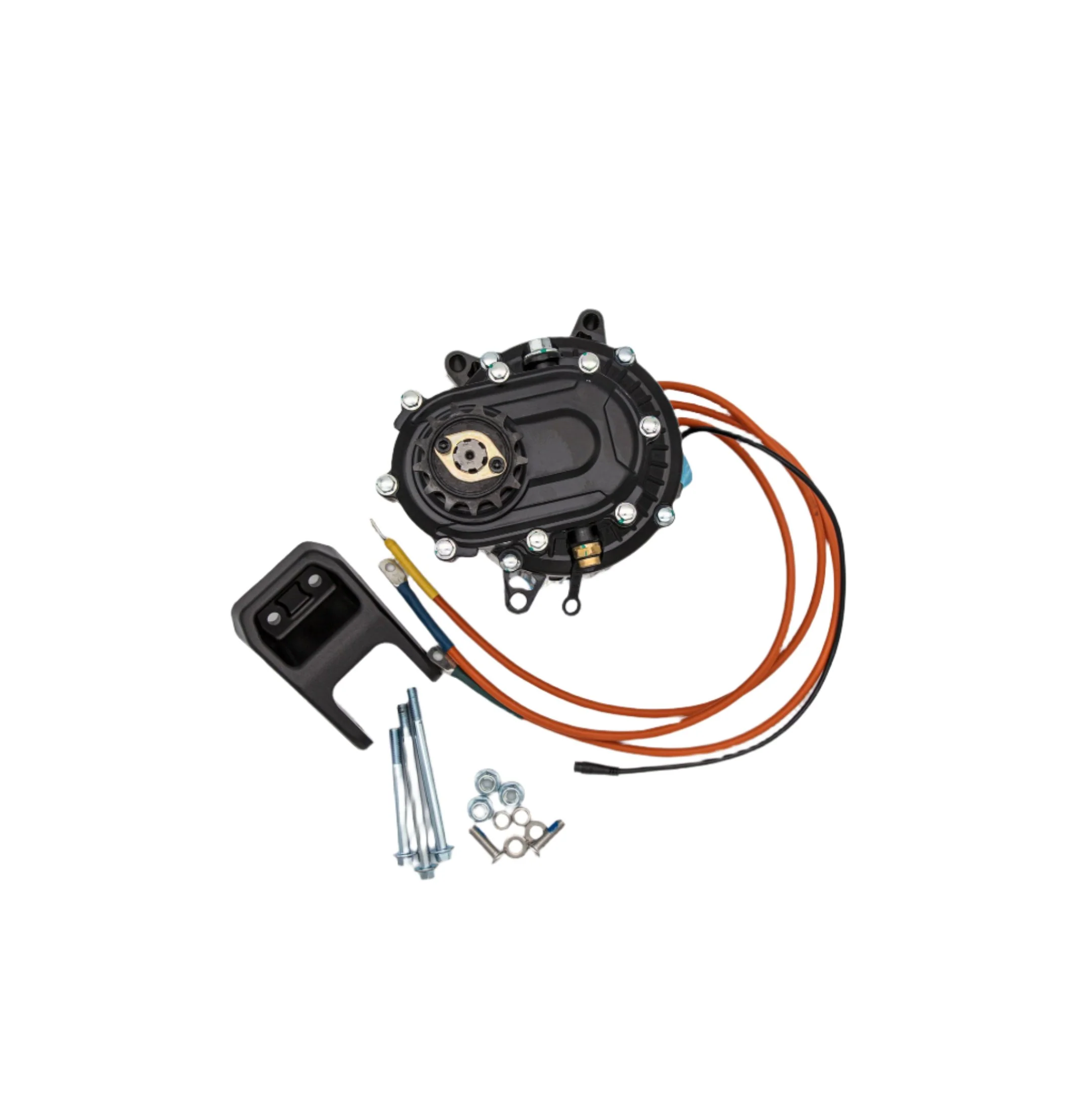

Motor Assembly
-
Model: 120-50 (with gearbox)
-
Voltage: 60V / 72V
-
Power: 3KW–6.5KW
-
Type: High-speed permanent magnet brushless DC motor (magnetic braiding)
Included Components
-
Small sprocket / 420 / 13Z / with mute rubber pad (motor included)
-
Small sprocket locking piece (motor included)
-
Small sprocket limit plate (motor included)
-
Hexagon socket head bolts / M5*8 / Grade 8.8 / Black zinc plated (motor supplied)
-
Motor bracket / Anodized black / DE02-M model
-
Hexagon socket chamfered flat head bolts / M8*25 / Stainless steel
-
Spring washer / φ8 / Stainless steel
-
Flat washer / φ8φ161.5 / Stainless steel
-
Hexagonal flange bolts / M8*80 / Grade 10.9 / Blue and white zinc
-
Hexagonal flange bolts / M8*105 / Grade 10.9 / Blue and white zinc
-
Hexagonal flange face metal self-locking nuts / M8 / Blue and white zinc
-
Fits 7UVRXLAB9SL002508 and older bikes (Mantis X)
-
Please contact us to confirm the compatibility of the parts
Compatible With
-
Mantis X
Weight
-
35lb
Note
-
Photos are for reference only. Actual product may differ in appearance.
